Klikseal® RAL 7035

Klikseal is a revolutionary two-component grommet with cable anchorage – something completely new to the cable sealing market. Through innovation and advanced production technology, we have designed a grommet that has many of the advantages found in a cable gland. Klikseal is tested and certified to Cable Anchorage Type A – the same standard most cable glands are approved to.

-                                        Material
+                                        TPE and Polyamide 66 UL listed material
-                                        Protection class
+                                        IP65
-                                        Temperature range
+                                        -20ºC....+125ºC (1)
-                                        Test standard
+                                        EN 60670-1:2005 + A1:2013
-                                        Semko report
+                                        1906922
-                                        Tariff No.
+                                        39269097
-                                        UNSPSC Code
+                                        39121431
-                                        Halogen-Free

(1) Unstressed material.

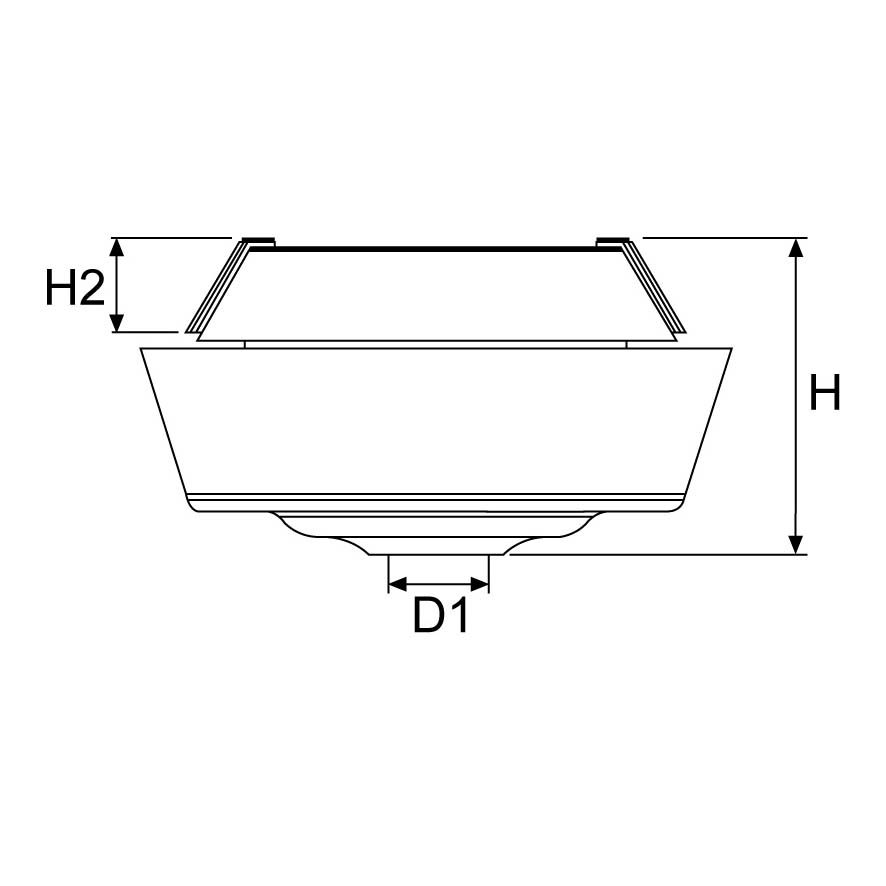

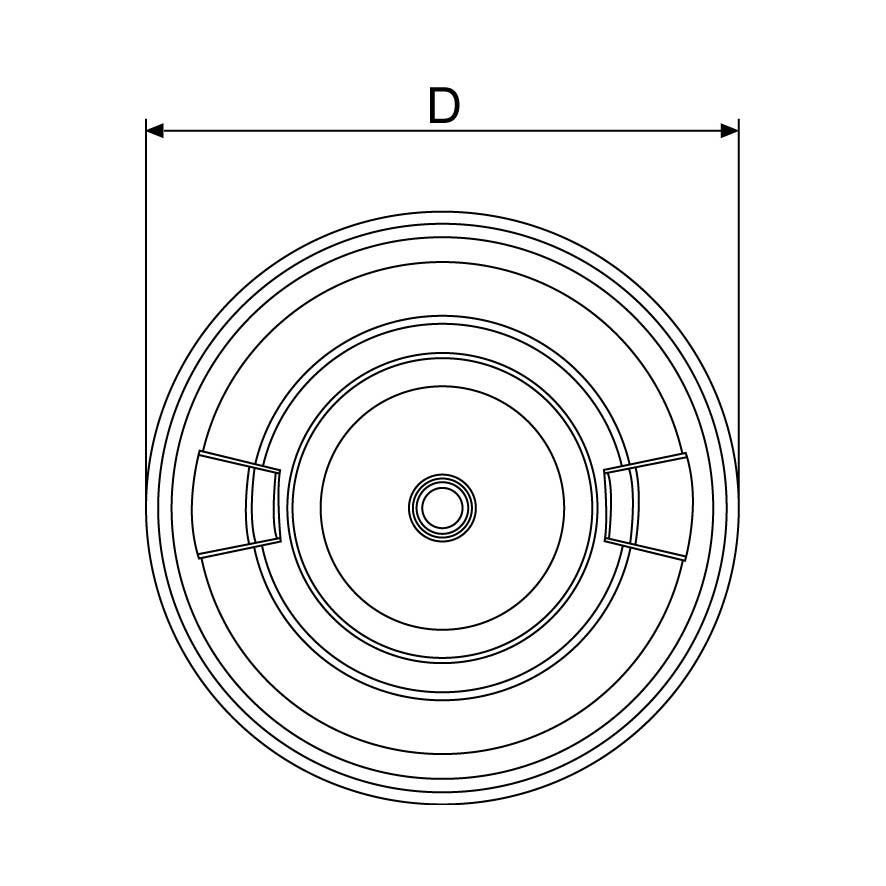

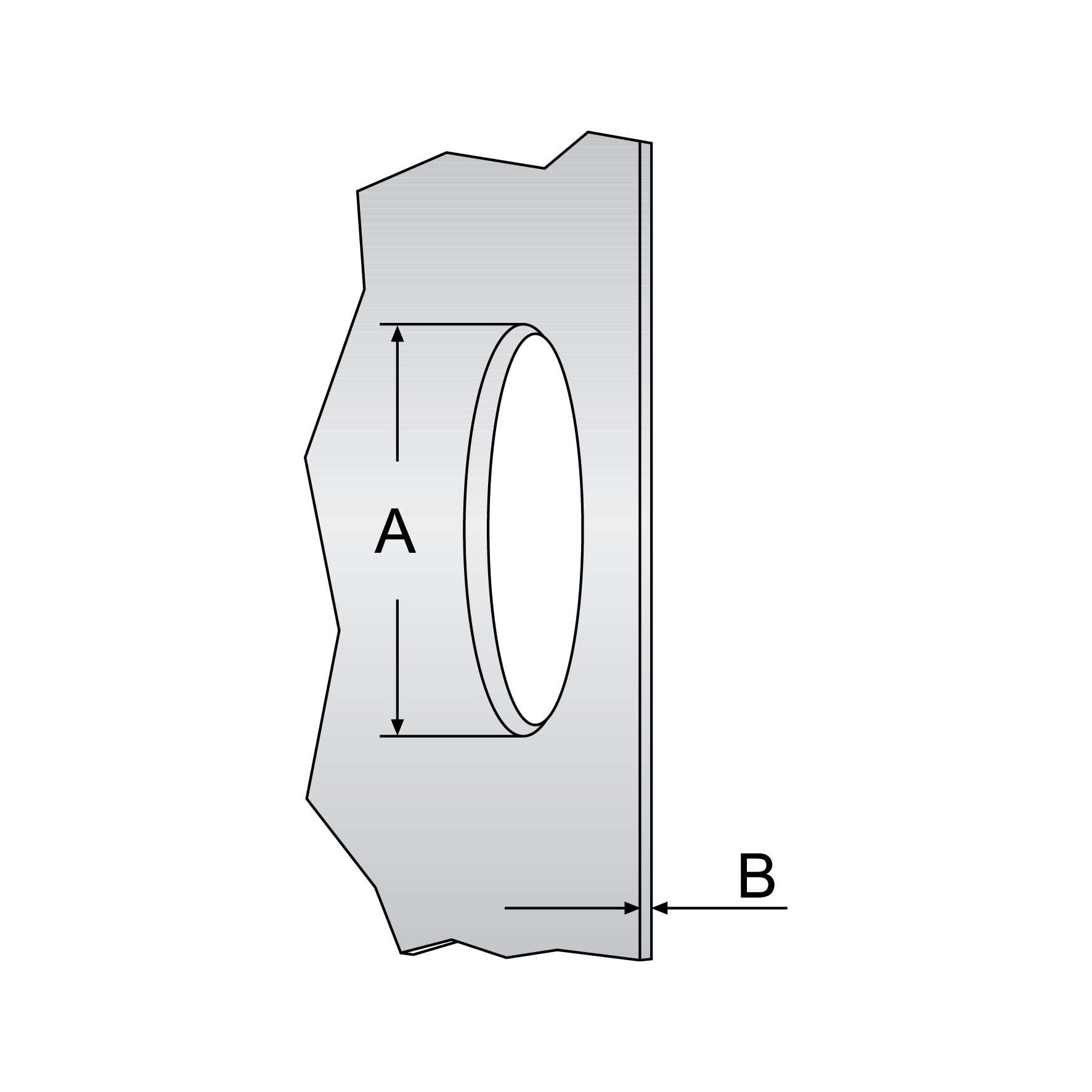

Measurements & Variants

Article no.	Size	IP65 and Cable Anchorage Type A* for Cable Ø mm	A mm	B mm	H	H2 mm	D1 mm	D*** mm	Pcs/pack
T_1475803	M20	7 - 11	20.5	2 - 5	17 - 20	5.5	4	29,3 - 34,5	50
T_1475804	M25	7 - 13**	25.5	2 - 5	17 - 20	5.5	5	34,3 - 40,0	50
* Cable Anchorage Type A, according to EN 50262. 8,1 - 8,9 mm only approved for tension relief. * Varies depending on the thickness of material installed in.

Information

Downloads

Material thickness IP65 2 – 5 mm

Integrated cable anchorage
Handles large range of cable and pipe diameter
Quick and simple assembly without the use of tools
Ergonomic installation
